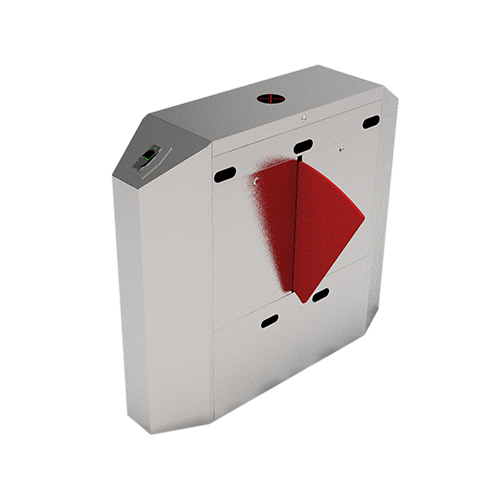

ZKTeco FBL2200 Dual Lane Flap Barrier

106 views

SKU: ZK-FBL2200-001

₹185,000

• Dual Lane Flap Barrier Design

• High-Speed & Reliable
Access Control

• Bidirectional Passage Control

• RFID Card & Biometric
Integration

• Anti-Tailgating &
Anti-Pinch Protection

• Automatic Arm Reset Function

• LED Passage Direction
Indicators

• Stainless Steel & Durable
Construction

• Emergency Automatic Arm Drop

Warranty

1 Year Standard

Delivery

Pan India

Installation

Free Setup

Support

24/7 Available

Technical Description :

Parameter	Specification
Model Name	ZKTeco FBL2200
Brand	ZKTeco
Type	Dual Lane Flap Barrier Turnstile
Barrier Type	Automatic Retracting Flap Gate
Material	SS 304 Stainless Steel
Lane Type	Dual Lane (can integrate with FBL2000 series)
Passage Width	600 mm per lane
Throughput Speed	25–30 persons/min (RFID)
Operation Mode	Bi-directional
Drive Mechanism	DC Motorized System
Sensor System	Infrared Anti-tailgating Sensors
Control Input	RFID / Fingerprint / Access Control System
Communication	TCP/IP, RS485 (optional integration)
Power Supply	AC 100–240V, 50/60Hz
Operating Temperature	-28°C to 60°C
Humidity Range	5% – 80%
Emergency Mode	Automatic flap open during power failure
Protection Level	Medium Security
Installation Type	Floor Mounted
MCBF (Life Cycle)	Up to 2 million cycles
Weight	Approx. 68–70 kg
