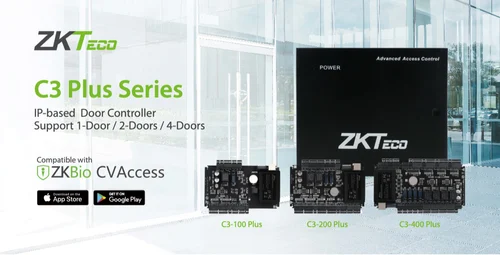

ZKTeco C3-400 Access Controller

Operating System

• Linux OS

Hardware

• CPU: Single Core @ 1.0GHz

• RAM: 128MB

• ROM: 256MB

Authentication Method

• Card / Password / QR Code

Access Point Capacity

• 4 Access Points

Reader Capacity

• 8 × RS-485 Readers (ZKTeco RS-485 / OSDP)

• 4 × Wiegand Readers (26 / 34 / 66-bit)

IO Expansion Board Capacity

• Supports up to 8 pcs EX0808 (RS-485 connection)

Capacities

• User Capacity: 100,000

• Card Capacity: 100,000 (1:N) (Standard)

• QR Code Capacity: 100,000 (Static / Dynamic QR Code)

• Transaction Capacity: 500,000 (Standard)

Inputs

• 4 × Exit Button

• 4 × Door Status

• 4 × AUX Inputs

• Or 64 (with 8 pcs EX0808 IO expansion board)

Outputs

• 4 × Form C Relay for Lock

• 4 × Form C Relay for Aux Output

• Or 64 (with 8 pcs EX0808 IO expansion board)

Card Support

• Supports up to 66 bits Card Length

QR Code

• QR code, PDF417, Data Matrix, MicroPDF417, Aztec (via 3rd-party development projects)

• Dynamic QR codes on ZKBio CVAccess mobile application

Communication

• TCP/IP × 1

• RS-485: ZKTeco RS-485 / OSDP × 1

• Wiegand (Input) × 4

• USB: Type A (USB Drive Only) × 1

• Aux Inputs × 4

• Aux Outputs × 4

• Electric Lock × 4

• Door Sensor × 4

• Exit Button × 4

• Alarm × 4

Standard Functions

• Webserver

• Up to 14-digit User ID

• Access Levels, Access Groups, Holidays

• Anti-passback, Anti-tailgating

• Linkage, Global Linkage

• Multiple Verification Methods

Access Control Interface

• Wiegand (Card Reader)

• RS-485 (Card Reader / QR Code Reader)

Power Supply

• 9.6V – 14.4V DC

Environmental Conditions

• Operating Temperature: 0℃ to 45℃

• Operating Humidity: 20% – 80% RH (Non-condensing)

Dimensions & Weight

• Device Size: 215.88 mm × 99.14 mm × 19.3 mm (L × W × H)

• Gross Weight: 0.357 Kg

• Net Weight: 0.252 Kg

Supported Software

• ZKBio CVAccess

Installation

• Wall-mount supported with Metal Enclosure (Optional)

Optional Enclosure

• Size: 350 mm × 90 mm × 300 mm (L × W × H)

• Material: SPCC steel

• Power Supply Unit: Input 110V~240V AC, Output 12V 4A+1A DC

• Backup Battery: Space reserved (Recommended size: 151 × 94 × 65 mm)

• Gross Weight (with enclosure): 3.56 Kg

Certifications

• ISO14001, ISO9001, CE, FCC, RoHS

Factory ID

• AC02-C14H-U10
