Turnstile & Boom Barrier

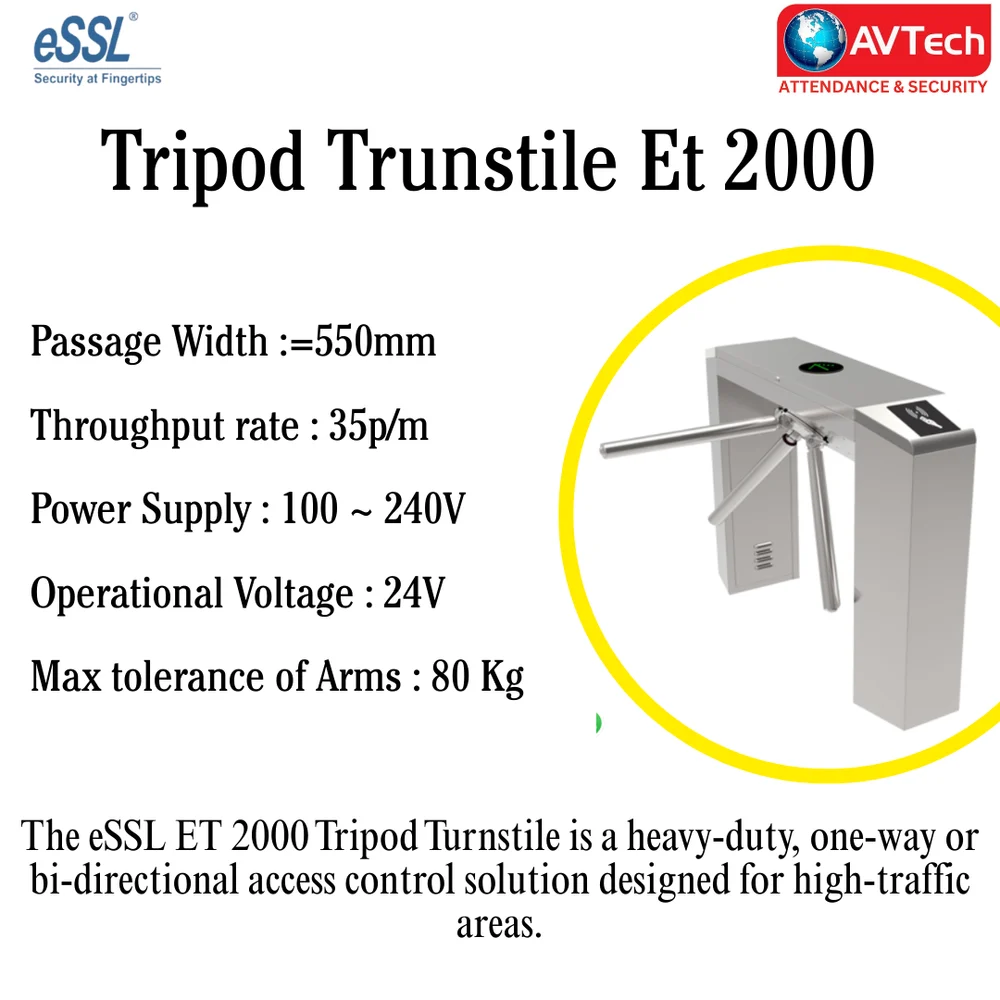

Tripod Trunstile Et 2000
102 views
|
SKU: Et 2000
₹89,999
·
Automatic Tripod Turnstile with SUS304 Stainless Steel
· 550 mm Passage Width
· 30–35 Persons/Minute
Throughput
· Bi-Directional Access
Control
· RFID, Fingerprint &
Face Recognition Support
· Automatic Arm Reset After
Each Passage
· Emergency Automatic Arm
Drop Function
· Anti-Tailgating &
Access Control Integration
· 1200 × 280 × 980 mm | AC 100–240V
Warranty
1 Year Standard
Delivery
Pan India
Installation
Free Setup
Support
24/7 Available
| ET2000 : Heavy Duty Tripod Turnstile | ||
|---|---|---|
| Basic | Passage Width :=550mm | |
| Throughput rate : 35p/m | ||
| Power Supply : 100 ~ 240V | ||
| Operational Voltage : 24V | ||
| Max tolerance of Arms : 80 Kg | ||
| Angle per rotation : 120o | ||
| Operation Type : Oneway - Bidirectional | ||
| Flow Rate : 25-48 passages/minute | ||
| Input control signal : Dry contact | ||
| Max Power Consumption : 30 W | ||
| Frequency : 50~60hz | ||
| Prectection Level : IP 54 | ||
| Semi-Auto mode | ||
| Working Temperature : -25oC ~ +70oC | ||
| Electro - magnetic Drive : DC | ||
| Dimension Excluding Bar : 1200x280x980 mm | ||
| Net Weight Including Bar : 52kg | ||
| Opening Duration : 5s - 60s | ||
| Device Holder : Acrylic / SS304 (Optional) | ||
Primary controller (Inbuilt) | CPU : 32 bit Microprocessor | |
| Opening Signal Input : yes | ||
| Emergency Switch Input : yes | ||
| Direction Indicator Output : yes | ||
| Passing Indicator Output : Yes | ||
| Drop Arm Electromagnet Output : Yes | ||
| Material Housing : SUS 304 | ||
| Operating Mode: Single way bi directional | ||
| Primary controller: Semi-automatic mode | ||
| Primary controller: Semi-automatic mode |
