iDFaceMax ControliD (ASSA ABLOY) Facial Recognisation System
· 7" TFT Color Touchscreen Display
(800x1280)
· Up to 100,000 Face Capacity with Liveness
Detection
· 200,000+ User Registration Capacity
· TCP/IP, USB, Wi-Fi & Bluetooth
Connectivity
· Dual 1080p Full HD Cameras (Visible &
Infrared Light)
· IP65 Weatherproof Design
· Advanced Access Control & Integrated
SIP Intercom
· External DC 12V/2A Source or PoE Support
· Size: 119.4 × 247 × 34.6 mm
| Verification Mode | Face+Card |
| Display Type | TFT |
| Application | Visitor Mgmt, Attend+Access, Attendance, Access Control |
| Face Capacity | Above 5000 |
| Display Size | 7 inch |
| Mask Detection | Yes |
| Type Of System | Facial Recognition |
| Products Included | Machine |
| Model Name/Number | iDFaceMax |
| Card Support | RFID Card |
| Power Supply | 12 V DC |
| Operating Temp | 0 to 45 C |
| Connectivity | TCP/IP, USB, Wi-Fi*, Bluetooth*, LTE* |
| Facial Recognition Capacity: | Up to 100,000 faces (1:N) with liveness detection |
⭐ Features
Facial Recognition Capacity: Up to 100,000 faces (1:N) with liveness detection
Mask Detection: Identifies users with or without a mask
Large Display: 7” TFT touchscreen (800×1280) with capacitive touch
Connectivity: TCP/IP, USB, Wi-Fi*, Bluetooth*, LTE*
SIP Intercom: Built-in G711 compatible SIP intercom (Pro version)
Ingress Protection: IP65 – suitable for outdoor use
Custom Access Rules: Manage by groups, schedules, and departments
Integrated Web Server: Browser-based access management
Audio: Built-in speaker & microphone
Multiple Identification Modes:
Facial Recognition (dual 1080p cameras: visible + IR)
Mifare High Frequency Card (13.56 MHz)
Password/PIN
QR Code

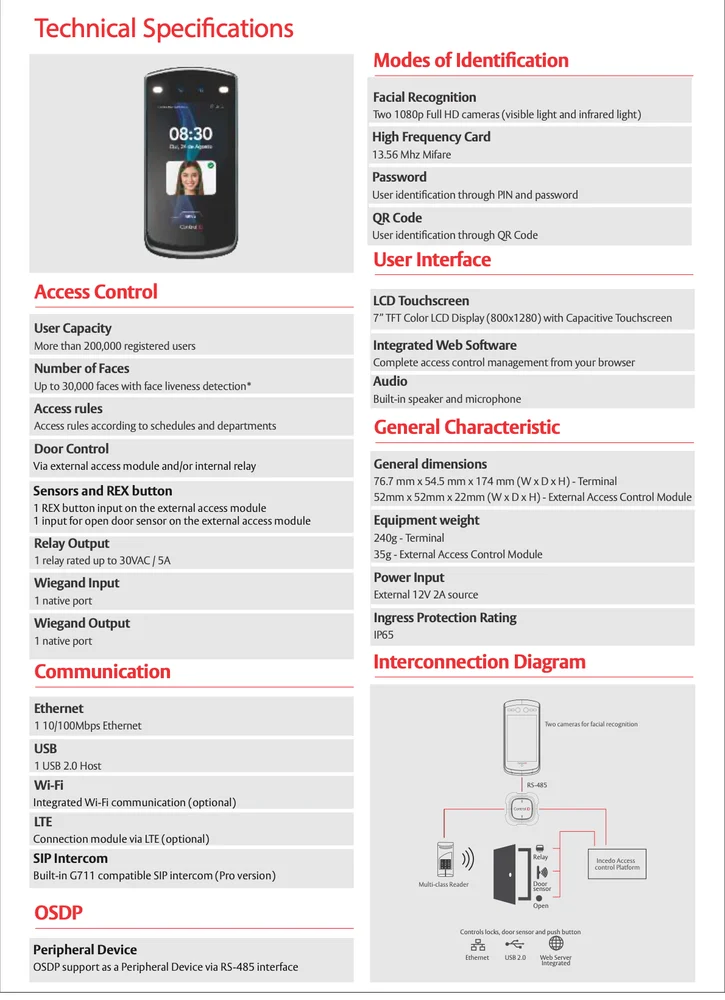

�� Technical SpecificationsGeneral
Dimensions (Terminal): 76.7 × 54.5 × 174 mm
Dimensions (External Module): 52 × 52 × 22 mm
Weight: 240 g (Terminal), 35 g (Module)
Power Input: 12V 2A external source
Ingress Protection: IP65
User & Access
User Capacity: Over 200,000 registered users
Face Capacity: Up to 100,000 faces with liveness detection
Door Control: Via external access module and/or internal relay
Relay Output: 1 relay (up to 30V AC / 5A)
Sensors & Inputs:
1 REX button input (external module)
1 door sensor input (external module)
Connectivity
Ethernet: 10/100 Mbps
USB: 1 × USB 2.0 Host
RS-485: OSDP support as Peripheral Device
Wi-Fi / Bluetooth / LTE: Optional models available
Wiegand: 1 input + 1 output
Interface
Display: 7” TFT Color LCD (800×1280)
Integrated Web Software: Complete access management from browser
Audio: Speaker + Microphone
SIP Intercom: Supported in Pro version
