Security Barriers

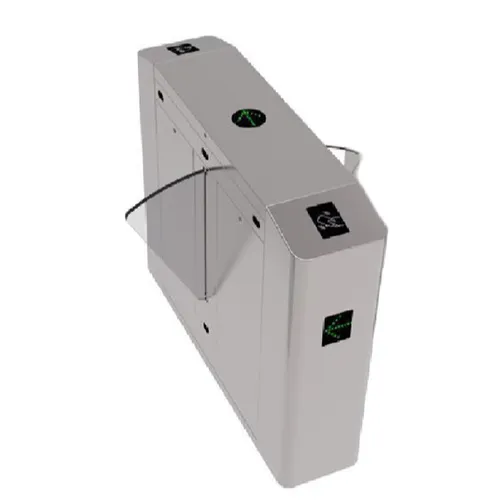

eSSL Flap Barrier Model FB-TL-2200
61 views
|
SKU: FB-TL-2200
₹195,723
·
Multi-Lane Automatic Flap Barrier
· SUS304 Stainless Steel
Construction
· 550 mm Lane Width
· RFID: Up to 35
Persons/Minute
· Fingerprint: Up to 25
Persons/Minute
· Face: Up to 11
Persons/Minute
· 0.2 Sec Fast Unlock Time
· Retractable Acrylic Barrier
with Emergency Mode
· 1200 × 280 × 980 mm | AC
100–240V | IP44
Warranty
1 Year Standard
Delivery
Pan India
Installation
Free Setup
Support
24/7 Available
| Material | Stainless Steel |
| Barrier Type | Yes |
| Brand | Essl |
| Model Name/Number | TL-2200 |
| Automation Grade | Automatic |
| Voltage | 24 Volt |
| Communication Port | TCP/IP |
Minimum order quantity: 1 Piece
| Flap Barrier : FB-TL-2200 | |
|---|---|
| Power Requirements | AC100~120V/200~240V,50/60Hz |
| Working Temperature | -28OC to 60OC |
| Working Humidity | 5%~80% |
| Working Environment | Indoor/outdoor (if sheltered) |
| RFID | Maximum 35/ minute |
| Fingerprint | Maximum 25/ minute |
| Face | Maximum 11/ minute |
| Vein | Maximum 23/ minute |
| Input | Dry Contact |
| Unlock Time | 0.2 sec |
| Dimensions(mm) | L=1200,W=280,H=980 |
| Net Weight(kg) | 94 |
| LED Indicator | Yes |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Barrier Material | Acrylic |
| Barrier Movement | Retracting |
| Emergency Mode | Yes |
| Security Level | Medium |
| MCBF | 2 million |
| Motor Specification | Type : DC Motor Output : 30W Speed : -1800rpm Voltage : -24V Current : - 1.7A |
